7.9. PC and PV currents

Import python libraries

Hide code cell content

import itertools
import re
from collections.abc import Iterable
from functools import cache
from pathlib import Path

import attrs
import cloudpickle
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
import plotly.graph_objects as go
import sympy as sp
import unicodeitplus
from ampform.io import aslatex
from ampform.sympy._cache import cache_to_disk
from ampform_dpd import AmplitudeModel
from ampform_dpd.decay import IsobarNode, ThreeBodyDecayChain, to_particle
from ampform_dpd.io import cached
from IPython.display import HTML, Markdown, Math, display
from matplotlib.patches import Rectangle
from matplotlib.ticker import FuncFormatter
from matplotlib_inline.backend_inline import set_matplotlib_formats
from plotly.subplots import make_subplots
from tensorwaves.interface import ParametrizedFunction
from tqdm.auto import tqdm

from polarimetry.data import create_data_transformer, generate_phasespace_sample
from polarimetry.function import integrate_intensity
from polarimetry.io import mute_jax_warnings
from polarimetry.lhcb import ModelName, load_model_builder, load_model_parameters
from polarimetry.lhcb.particle import load_particles
from polarimetry.plot import reduce_svg_size, use_mpl_latex_fonts

src = '<script type="text/javascript" async src="https://cdnjs.cloudflare.com/ajax/libs/mathjax/2.7.1/MathJax.js?config=TeX-MML-AM_SVG"></script>'
display(HTML(src))
mute_jax_warnings()
set_matplotlib_formats("svg")
use_mpl_latex_fonts()

MODEL_FILE = "../../data/model-definitions.yaml"
PARTICLES = load_particles("../../data/particle-definitions.yaml")

7.9.1. Model formulation

Show code cell source

Hide code cell source

def formulate_model(title: ModelName) -> AmplitudeModel:
    builder = load_model_builder(MODEL_FILE, PARTICLES, title)
    imported_parameters = load_model_parameters(
        MODEL_FILE, builder.decay, title, PARTICLES
    )
    model = builder.formulate(reference_subsystem=1)
    return attrs.evolve(
        model,
        parameter_defaults={**model.parameter_defaults, **imported_parameters},
    )


CANO_MODEL = formulate_model("Alternative amplitude model obtained using LS couplings")
HELI_MODEL = formulate_model("Default amplitude model")

Convert expressions to numerical functions

Hide code cell source

@cache_to_disk(
    dependencies=[
        "ampform",
        "ampform_dpd",
        "cloudpickle",
        "jax",
        "lc2pkpi-polarimetry",
        "sympy",
    ],
    dump_function=cloudpickle.dump,
)
def lambdify_ls_and_default_model() -> tuple[
    ParametrizedFunction, ParametrizedFunction
]:
    return lambdify(HELI_MODEL), lambdify(CANO_MODEL)


def lambdify(model: AmplitudeModel) -> ParametrizedFunction:
    intensity_expr = cached.unfold(model)
    pars = model.parameter_defaults
    free_parameters = {s: v for s, v in pars.items() if "production" in str(s)}
    fixed_parameters = {s: v for s, v in pars.items() if s not in free_parameters}
    subs_intensity_expr = cached.xreplace(intensity_expr, fixed_parameters)
    return cached.lambdify(subs_intensity_expr, free_parameters)


HELI_FUNC, CANO_FUNC = lambdify_ls_and_default_model()

7.9.2. Sort couplings by PC/PV

Show code cell source

Hide code cell source

def is_pc(node: IsobarNode) -> int:
    """Check if the production node in a decay is parity-conserving."""
    parent = to_particle(node.parent)
    child1 = to_particle(node.child1)
    child2 = to_particle(node.child2)
    assert child1.parity is not None
    assert child2.parity is not None
    assert node.interaction is not None
    L = node.interaction.L
    return parent.parity == child1.parity * child2.parity * (-1) ** L


def get_chain_identifier(chain: ThreeBodyDecayChain) -> str:
    assert chain.incoming_ls is not None
    resonance_id = chain.resonance.latex
    S = to_frac(str(chain.incoming_ls.S), frac=False, use_sign=False)
    return Rf"{resonance_id} \, {{}}^{{L={chain.incoming_ls.L}}}_{{S={S}}}"


@cache
def to_frac(text: str, frac: bool, use_sign: bool) -> str:
    if "/" in text:
        denominator, nominator = text.split("/")
        denominator = int(denominator)
        nominator = int(nominator)
        sign = ""
        if use_sign:
            sign = "-" if denominator < 0 else "+"
            denominator = f"{abs(denominator)}"
        if frac:
            return Rf"{sign}\frac{{{denominator}}}{{{nominator}}}"
        return Rf"{sign}{denominator}/{nominator}"
    return text


PC_PV_MAPPING = {
    get_chain_identifier(chain): Rf"\texttt{{{is_pc(chain.production_node)}}}"
    for chain in CANO_MODEL.decay.chains
}
Math(aslatex(PC_PV_MAPPING))

Show code cell output

Hide code cell output

\[\begin{split}\displaystyle \begin{aligned} \Lambda(1405) \, {}^{L=0}_{S=1/2} \;&=\; \texttt{True} \\ \Lambda(1405) \, {}^{L=1}_{S=1/2} \;&=\; \texttt{False} \\ \Lambda(1520) \, {}^{L=1}_{S=3/2} \;&=\; \texttt{False} \\ \Lambda(1520) \, {}^{L=2}_{S=3/2} \;&=\; \texttt{True} \\ \Lambda(1600) \, {}^{L=0}_{S=1/2} \;&=\; \texttt{False} \\ \Lambda(1600) \, {}^{L=1}_{S=1/2} \;&=\; \texttt{True} \\ \Lambda(1670) \, {}^{L=0}_{S=1/2} \;&=\; \texttt{True} \\ \Lambda(1670) \, {}^{L=1}_{S=1/2} \;&=\; \texttt{False} \\ \Lambda(1690) \, {}^{L=1}_{S=3/2} \;&=\; \texttt{False} \\ \Lambda(1690) \, {}^{L=2}_{S=3/2} \;&=\; \texttt{True} \\ \Lambda(2000) \, {}^{L=0}_{S=1/2} \;&=\; \texttt{True} \\ \Lambda(2000) \, {}^{L=1}_{S=1/2} \;&=\; \texttt{False} \\ \Delta(1232) \, {}^{L=1}_{S=3/2} \;&=\; \texttt{True} \\ \Delta(1232) \, {}^{L=2}_{S=3/2} \;&=\; \texttt{False} \\ \Delta(1600) \, {}^{L=1}_{S=3/2} \;&=\; \texttt{True} \\ \Delta(1600) \, {}^{L=2}_{S=3/2} \;&=\; \texttt{False} \\ \Delta(1700) \, {}^{L=1}_{S=3/2} \;&=\; \texttt{False} \\ \Delta(1700) \, {}^{L=2}_{S=3/2} \;&=\; \texttt{True} \\ K(700) \, {}^{L=0}_{S=1/2} \;&=\; \texttt{True} \\ K(700) \, {}^{L=1}_{S=1/2} \;&=\; \texttt{False} \\ K(892) \, {}^{L=0}_{S=1/2} \;&=\; \texttt{False} \\ K(892) \, {}^{L=1}_{S=1/2} \;&=\; \texttt{True} \\ K(892) \, {}^{L=1}_{S=3/2} \;&=\; \texttt{True} \\ K(892) \, {}^{L=2}_{S=3/2} \;&=\; \texttt{False} \\ K(1430) \, {}^{L=0}_{S=1/2} \;&=\; \texttt{True} \\ K(1430) \, {}^{L=1}_{S=1/2} \;&=\; \texttt{False} \\ \end{aligned}\end{split}\]

Show code cell source

Hide code cell source

def sort_couplings(parameters: Iterable[str], helicity: bool) -> list[str]:
    couplings = (p for p in parameters if "production" in p)
    if helicity:
        return sorted(couplings, key=factorize_latex)
    return sorted(
        couplings,
        key=lambda x: (
            PC_PV_MAPPING[get_partial_wave_latex(x, helicity)],
            factorize_latex(x),
        ),
    )


@cache
def factorize_latex(coupling: str) -> tuple[str, int, str, str]:
    match = re.match(r"^.*\[(\\?[DKL][a-z]*)\((\d+)\), ([^,]+), ([^,]+)\]$", coupling)
    assert match is not None
    resonance, mass, idx1, idx2 = match.groups()
    return resonance, int(mass), idx1, idx2


@cache
def get_partial_wave_latex(coupling: str, helicity: bool) -> str:
    R, mass, *indices = factorize_latex(coupling)
    if helicity:
        latex_indices = (to_frac(x, frac=True, use_sign=True) for x in indices)
        λ_resonance, λ_recoil = latex_indices
        return f"{R}({mass}), {λ_resonance}, {λ_recoil}"
    L, S = (to_frac(x, frac=False, use_sign=False) for x in indices)
    return Rf"{R}({mass}) \, {{}}^{{L={L}}}_{{S={S}}}"

CANO_COUPLINGS = sort_couplings(CANO_FUNC.parameters, helicity=False)
HELI_COUPLINGS = sort_couplings(HELI_FUNC.parameters, helicity=True)

Show code cell source

Hide code cell source

sp.Matrix([
    [sp.Symbol(get_partial_wave_latex(s, helicity=False)) for s in CANO_COUPLINGS],
    [sp.Symbol(get_partial_wave_latex(s, helicity=True)) for s in HELI_COUPLINGS],
]).T

Show code cell output

Hide code cell output

\[\begin{split}\displaystyle \left[\begin{matrix}K(700) \, {}^{L=1}_{S=1/2} & K(700), 0, -\frac{1}{2}\\K(892) \, {}^{L=0}_{S=1/2} & K(700), 0, +\frac{1}{2}\\K(892) \, {}^{L=2}_{S=3/2} & K(892), -1, -\frac{1}{2}\\K(1430) \, {}^{L=1}_{S=1/2} & K(892), 0, -\frac{1}{2}\\\Delta(1232) \, {}^{L=2}_{S=3/2} & K(892), 0, +\frac{1}{2}\\\Delta(1600) \, {}^{L=2}_{S=3/2} & K(892), 1, +\frac{1}{2}\\\Delta(1700) \, {}^{L=1}_{S=3/2} & K(1430), 0, -\frac{1}{2}\\\Lambda(1405) \, {}^{L=1}_{S=1/2} & K(1430), 0, +\frac{1}{2}\\\Lambda(1520) \, {}^{L=1}_{S=3/2} & \Delta(1232), -\frac{1}{2}, 0\\\Lambda(1600) \, {}^{L=0}_{S=1/2} & \Delta(1232), +\frac{1}{2}, 0\\\Lambda(1670) \, {}^{L=1}_{S=1/2} & \Delta(1600), -\frac{1}{2}, 0\\\Lambda(1690) \, {}^{L=1}_{S=3/2} & \Delta(1600), +\frac{1}{2}, 0\\\Lambda(2000) \, {}^{L=1}_{S=1/2} & \Delta(1700), -\frac{1}{2}, 0\\K(700) \, {}^{L=0}_{S=1/2} & \Delta(1700), +\frac{1}{2}, 0\\K(892) \, {}^{L=1}_{S=1/2} & \Lambda(1405), -\frac{1}{2}, 0\\K(892) \, {}^{L=1}_{S=3/2} & \Lambda(1405), +\frac{1}{2}, 0\\K(1430) \, {}^{L=0}_{S=1/2} & \Lambda(1520), -\frac{1}{2}, 0\\\Delta(1232) \, {}^{L=1}_{S=3/2} & \Lambda(1520), +\frac{1}{2}, 0\\\Delta(1600) \, {}^{L=1}_{S=3/2} & \Lambda(1600), -\frac{1}{2}, 0\\\Delta(1700) \, {}^{L=2}_{S=3/2} & \Lambda(1600), +\frac{1}{2}, 0\\\Lambda(1405) \, {}^{L=0}_{S=1/2} & \Lambda(1670), -\frac{1}{2}, 0\\\Lambda(1520) \, {}^{L=2}_{S=3/2} & \Lambda(1670), +\frac{1}{2}, 0\\\Lambda(1600) \, {}^{L=1}_{S=1/2} & \Lambda(1690), -\frac{1}{2}, 0\\\Lambda(1670) \, {}^{L=0}_{S=1/2} & \Lambda(1690), +\frac{1}{2}, 0\\\Lambda(1690) \, {}^{L=2}_{S=3/2} & \Lambda(2000), -\frac{1}{2}, 0\\\Lambda(2000) \, {}^{L=0}_{S=1/2} & \Lambda(2000), +\frac{1}{2}, 0\end{matrix}\right]\end{split}\]

7.9.3. Compute decay rates

TRANSFORMER = create_data_transformer(HELI_MODEL)
PHSP = generate_phasespace_sample(HELI_MODEL.decay, n_events=100_000, seed=0)
PHSP = TRANSFORMER(PHSP)

Show code cell source

Hide code cell source

def compute_decay_rate_matrix(
    intensity_func: ParametrizedFunction, couplings: list[str]
) -> jnp.ndarray:
    I_tot = integrate_intensity(intensity_func(PHSP))
    n_couplings = len(couplings)
    matrix = np.zeros((n_couplings, n_couplings))
    original_parameters = dict(intensity_func.parameters)
    cache: dict[tuple[int, int], jnp.ndarray] = {}
    progress_bar = tqdm(
        desc="Computing decay rates",
        total=n_couplings * (n_couplings + 1) // 2,
    )
    is_helicity = is_helicity_func(intensity_func)
    items = list(enumerate(couplings))
    for (i, ci), (j, cj) in itertools.product(items, items):
        pi = get_partial_wave_name(ci, is_helicity)
        pj = get_partial_wave_name(cj, is_helicity)
        progress_bar.set_postfix_str(Rf"{pi} x {pj}")
        transpose_value = cache.get((j, i))
        if transpose_value is None:
            new_parameters = dict.fromkeys(couplings, 0)
            new_parameters[ci] = original_parameters[ci]  # ty:ignore[invalid-assignment]
            new_parameters[cj] = original_parameters[cj]  # ty:ignore[invalid-assignment]
            intensity_func.update_parameters(new_parameters)
            I_sub = integrate_intensity(intensity_func(PHSP))
            intensity_func.update_parameters(original_parameters)
            cache[i, j] = I_sub / I_tot
            matrix[i, j] = cache[i, j]
            progress_bar.update()
        else:
            cache[i, j] = transpose_value
            matrix[i, j] = transpose_value
    progress_bar.close()
    return jnp.array(matrix)


def is_helicity_func(intensity_func: ParametrizedFunction) -> bool:
    couplings = (p for p in intensity_func.parameters if "production" in p)
    return not any("LS" in p for p in couplings)


@cache
def get_partial_wave_name(coupling: str, helicity: bool) -> str:
    latex = get_partial_wave_latex(coupling, helicity)
    latex = re.sub(r" \\, {}\^{L=([^}]+)}_{S=([^}]+)}", r",\1,\2", latex)
    latex = re.sub(r"\\frac{(\d+)}{(\d+)}", r"\1/\2", latex)
    latex = latex.replace("1/2", "½")
    latex = latex.replace("3/2", "3⁄2")
    return unicodeitplus.replace(latex)

CANO_RATES = compute_decay_rate_matrix(CANO_FUNC, CANO_COUPLINGS)
assert CANO_RATES.shape == (len(CANO_COUPLINGS), len(CANO_COUPLINGS))

W0406 22:40:07.033780    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:40:25.323439    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:42:09.551602    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:42:40.510097    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:43:10.299160    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:43:38.845721    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:44:05.628615    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:44:31.379725    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:44:55.108699    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:45:18.026275    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:45:39.500129    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:45:59.702359    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

HELI_RATES = compute_decay_rate_matrix(HELI_FUNC, HELI_COUPLINGS)
assert HELI_RATES.shape == (len(HELI_COUPLINGS), len(HELI_COUPLINGS))

W0406 22:48:08.937493    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:48:10.944513    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:52:33.971467    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:53:45.655076    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:54:51.139953    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:55:48.465313    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:56:38.152205    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:57:20.148091    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:57:56.301424    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:58:23.019815    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:58:42.216009    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

W0406 22:58:53.715544    7594 pjrt_executable.cc:638] Assume version compatibility. PjRt-IFRT does not track XLA executable versions.

Show code cell source

Hide code cell source

def compute_interference(rates: jnp.ndarray) -> jnp.ndarray:
    m, n = rates.shape
    assert m == n
    d = rates.diagonal()
    D = d * np.identity(m)
    X = d[None] + d[None].T
    return (rates - X + D) / 2 + D

CANO_INTERFERENCE = compute_interference(CANO_RATES)
HELI_INTERFERENCE = compute_interference(HELI_RATES)

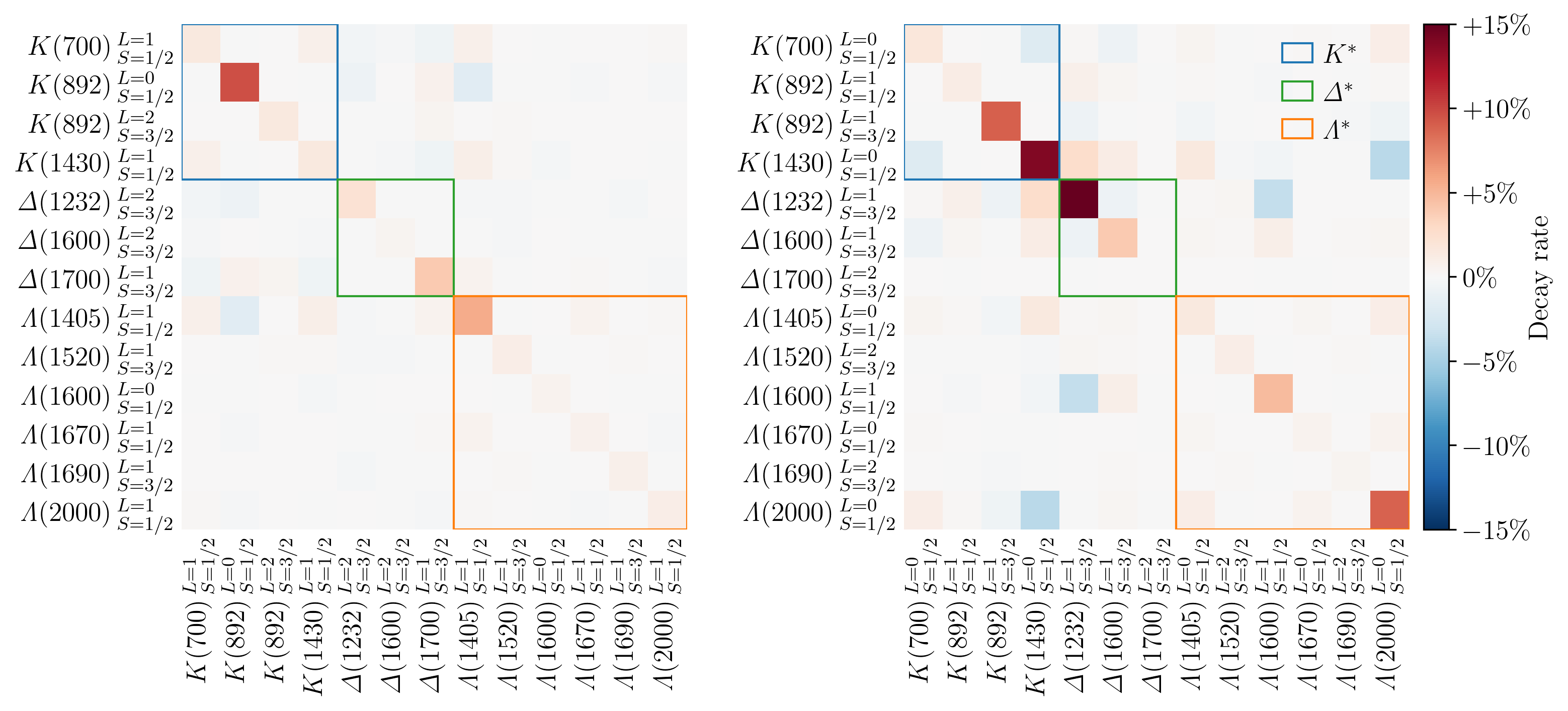

7.9.4. Visualize decay rates

Show code cell source

Hide code cell source

def visualize_rates(
    labels: list[str], rates: jnp.ndarray, model_name: str, helicity: bool
) -> go.Figure:
    abs_max = float(jnp.abs(rates).max())
    abs_max = np.floor(abs_max * 5) / 5
    if not helicity:
        rates = jnp.where(jnp.abs(rates) > 1e-7, rates, jnp.nan)
    fig = go.Figure()
    fig.add_trace(
        go.Heatmap(
            x=labels,
            y=labels,
            z=rates,
            colorscale="RdBu_r",
            customdata=100 * rates,
            hovertemplate="%{x}<br>%{y}<br>Decay rate: <b>%{customdata:+.3g}%</b><extra></extra>",
            zmin=-abs_max,
            zmax=+abs_max,
            colorbar=dict(
                title="Decay rate",
                title_side="right",
                tickformat="+.0%",
            ),
        )
    )
    if helicity:
        indicate_subsystem(fig, 0, 7, label="𝐾<sup>*</sup>")
        indicate_subsystem(fig, 8, 13, label="𝛥<sup>*</sup>")
        indicate_subsystem(fig, 14, 25, label="𝛬</sup>*</sup>")
    else:
        indicate_subsystem(fig, 0, 3, label="𝐾<sup>*</sup>")
        indicate_subsystem(fig, 4, 6, label="𝛥<sup>*</sup>")
        indicate_subsystem(fig, 7, 12, label="𝛬</sup>*</sup>")
        indicate_subsystem(fig, 13, 16, label="𝐾<sup>*</sup>", legend=False)
        indicate_subsystem(fig, 17, 19, label="𝛥<sup>*</sup>", legend=False)
        indicate_subsystem(fig, 20, 25, label="𝛬</sup>*</sup>", legend=False)
        fig.add_annotation(
            x=13.5,
            y=6,
            font_size=15,
            showarrow=False,
            text="parity-violating",
            textangle=+90,
        )
        fig.add_annotation(
            x=11.5,
            y=19,
            font_size=15,
            text="parity-conserving",
            showarrow=False,
            textangle=-90,
        )
    fig.update_layout(
        autosize=False,
        height=750,
        legend=dict(font_size=16, yanchor="top", y=1, xanchor="left", x=0.85),
        paper_bgcolor="rgba(0, 0, 0, 0)",
        title=dict(
            text=f"Decay rates of {model_name}",
            xanchor="center",
            x=0.5,
            y=0.89,
        ),
    )
    fig.update_scenes(aspectmode="data")
    fig.update_yaxes(autorange="reversed")
    return fig


def indicate_subsystem(
    fig: go.Figure,
    idx1: int,
    idx2: int,
    label: str,
    legend: bool = True,
    col: int | None = None,
) -> go.Figure:
    colors = {
        "𝐾<sup>*</sup>": ("red", "rgba(255,0,0,0.1)"),
        "𝛬</sup>*</sup>": ("green", "rgba(0,255,0,0.1)"),
        "𝛥<sup>*</sup>": ("blue", "rgba(0,0,255,0.1)"),
    }
    linecolor, fillcolor = colors[label]
    left = idx1 - 0.5
    right = idx2 + 0.5
    kwargs = dict(
        **dict(x0=left, x1=right, y0=left, y1=right),
        fillcolor=fillcolor,
        line=dict(color=linecolor, width=1),
        name=label,
        opacity=0.3,
        showlegend=legend,
        type="rect",
    )
    if col is not None:
        kwargs["col"] = col
        kwargs["row"] = 1
    return fig.add_shape(**kwargs)

Show code cell source

Hide code cell source

CANO_LABELS = [get_partial_wave_name(p, helicity=False) for p in CANO_COUPLINGS]
fig = visualize_rates(
    CANO_LABELS, CANO_INTERFERENCE, "LS model (canonical basis)", helicity=False
)
CANONICAL_PATH = Path("../_static/images/decay-rates-default-canonical.svg")
fig.write_image(CANONICAL_PATH)
fig

Show code cell source

Hide code cell source

HELI_LABELS = [get_partial_wave_name(p, helicity=True) for p in HELI_COUPLINGS]
fig = visualize_rates(
    HELI_LABELS, HELI_INTERFERENCE, "default model (helicity basis)", helicity=True
)
HELICITY_PATH = Path("../_static/images/decay-rates-default-helicity.svg")
fig.write_image(HELICITY_PATH)
fig

PV/PC currents as subplots

Hide code cell source

n_pv = 13
rates = CANO_INTERFERENCE
pv_rates = rates[:n_pv, :n_pv]
pc_rates = rates[n_pv:, n_pv:]
abs_max = float(jnp.abs(rates).max())
abs_max = np.floor(abs_max * 5) / 5

fig = make_subplots(
    cols=2,
    horizontal_spacing=0.18,
    rows=1,
    subplot_titles=(
        "parity-violating",
        "parity-conserving",
    ),
)
heatmap_kwargs = dict(
    colorscale="RdBu_r",
    hovertemplate="%{x}<br>%{y}<br>Decay rate: <b>%{customdata:+.3g}%</b><extra></extra>",
    zmin=-abs_max,
    zmax=+abs_max,
)
fig.add_trace(
    go.Heatmap(
        x=CANO_LABELS[:n_pv],
        y=CANO_LABELS[:n_pv],
        z=pv_rates,
        customdata=100 * pv_rates,
        showscale=False,
        **heatmap_kwargs,
    ),
    col=1,
    row=1,
)
fig.add_trace(
    go.Heatmap(
        x=CANO_LABELS[n_pv:],
        y=CANO_LABELS[n_pv:],
        z=pc_rates,
        customdata=100 * pc_rates,
        colorbar=dict(
            title="Decay rate",
            title_side="right",
            tickformat="+.0%",
            thickness=12,
            xpad=1,
        ),
        **heatmap_kwargs,
    ),
    col=2,
    row=1,
)
indicate_subsystem(fig, 0, 3, label="𝐾<sup>*</sup>", col=1)
indicate_subsystem(fig, 4, 6, label="𝛥<sup>*</sup>", col=1)
indicate_subsystem(fig, 7, 12, label="𝛬</sup>*</sup>", col=1)
indicate_subsystem(fig, 0, 3, label="𝐾<sup>*</sup>", col=2, legend=False)
indicate_subsystem(fig, 4, 6, label="𝛥<sup>*</sup>", col=2, legend=False)
indicate_subsystem(fig, 7, 12, label="𝛬</sup>*</sup>", col=2, legend=False)
fig.update_layout(
    autosize=False,
    height=420,
    legend=dict(font_size=16, yanchor="top", y=1, xanchor="left", x=0.85),
    paper_bgcolor="rgba(0, 0, 0, 0)",
    title=dict(
        text="Decay rates of default model",
        xanchor="center",
        x=0.5,
        y=0.87,
    ),
)
fig.update_yaxes(autorange="reversed")
CANO_PATH_SPLIT = Path("../_static/images/decay-rates-default-canonical-split.svg")
fig.write_image(CANO_PATH_SPLIT)
fig.show()

Show code cell source

Hide code cell source

def indicate_subsystem_mpl(ax, start, end, label, color):
    x0 = start - 0.5
    y0 = start - 0.5
    w = end - start + 1
    h = end - start + 1
    rect = Rectangle(
        (x0, y0),
        w,
        h,
        edgecolor=color,
        linewidth=1,
        fill=False,
        label=label,
    )
    ax.add_patch(rect)
    return rect


plt.rc("font", size=13)
fig, axes = plt.subplots(
    constrained_layout=True,
    dpi=300,
    figsize=(10.5, 4.6),
    ncols=2,
)
fig.patch.set_facecolor("none")
for ax in axes:
    for spine in ax.spines.values():
        spine.set_visible(False)
    ax.patch.set_facecolor("none")
    ax.tick_params(axis="both", which="both", length=-4)
    ax.xaxis.set_tick_params(pad=7)
    ax.yaxis.set_tick_params(pad=7)
ax1, ax2 = axes

abs_max = 0.15
vmin, vmax = -abs_max, +abs_max
cmap = "RdBu_r"

CANO_LABELS_LATEX = [
    f"${get_partial_wave_latex(p, helicity=False)}$".replace(
        R"\Delta", R"\mathit{\Delta}"
    ).replace(R"\Lambda", R"\mathit{\Lambda}")
    for p in CANO_COUPLINGS
]
im1 = ax1.imshow(pv_rates, cmap=cmap, vmin=vmin, vmax=vmax)
im2 = ax2.imshow(pc_rates, cmap=cmap, vmin=vmin, vmax=vmax)
ax1.set_xticks(np.arange(pv_rates.shape[1]))
ax1.set_yticks(np.arange(pv_rates.shape[0]))
ax1.set_xticklabels(CANO_LABELS_LATEX[:n_pv], rotation=90, ha="center")
ax1.set_yticklabels(CANO_LABELS_LATEX[:n_pv])
ax2.set_xticks(np.arange(pc_rates.shape[1]))
ax2.set_yticks(np.arange(pc_rates.shape[0]))
ax2.set_xticklabels(CANO_LABELS_LATEX[n_pv:], rotation=90, ha="center")
ax2.set_yticklabels(CANO_LABELS_LATEX[n_pv:])

indicate_subsystem_mpl(ax1, 0, 3, R"$K^*$", "C0")
indicate_subsystem_mpl(ax1, 4, 6, R"$\mathit{\Delta}^*$", "C2")
indicate_subsystem_mpl(ax1, 7, 12, R"$\mathit{\Lambda}^*$", "C1")
handles = [
    indicate_subsystem_mpl(ax2, 0, 3, R"$K^*$", "C0"),
    indicate_subsystem_mpl(ax2, 4, 6, R"$\mathit{\Delta}^*$", "C2"),
    indicate_subsystem_mpl(ax2, 7, 12, R"$\mathit{\Lambda}^*$", "C1"),
]
ax2.legend(
    bbox_to_anchor=(0.7, 1.01),
    frameon=False,
    handles=handles,
    handlelength=1.1,
    handletextpad=0.4,
    loc="upper left",
)

cbar = fig.colorbar(im2, ax=axes, fraction=0.028, pad=0.01)
cbar.formatter = FuncFormatter(lambda x, _: Rf"${100 * x:+.0f}\%$" if x else R"$0\%$")
cbar.set_label("Decay rate", rotation=90, labelpad=-2)

CANO_PATH_MPL = "../_static/images/decay-rates-default-canonical-split-matplotlib.svg"
fig.savefig(CANO_PATH_MPL, bbox_inches="tight")
plt.show()

Show code cell source

Hide code cell source

fig1 = go.Figure(
    data=go.Heatmap(
        x=CANO_LABELS[:n_pv],
        y=CANO_LABELS[:n_pv],
        z=pv_rates,
        customdata=100 * pv_rates,
        showscale=False,
        **heatmap_kwargs,
    )
)
indicate_subsystem(fig1, 0, 3, label="𝐾<sup>*</sup>")
indicate_subsystem(fig1, 4, 6, label="𝛥<sup>*</sup>")
indicate_subsystem(fig1, 7, 12, label="𝛬</sup>*</sup>")

fig2 = go.Figure(
    data=go.Heatmap(
        x=CANO_LABELS[n_pv:],
        y=CANO_LABELS[n_pv:],
        z=pc_rates,
        customdata=100 * pc_rates,
        colorbar=dict(
            tickformat="+.0%",
            thickness=12,
            xpad=2,
        ),
        **heatmap_kwargs,
    )
)
indicate_subsystem(fig2, 0, 2, label="𝐾<sup>*</sup>", legend=False)
indicate_subsystem(fig2, 3, 5, label="𝛥<sup>*</sup>", legend=False)
indicate_subsystem(fig2, 6, 11, label="𝛬</sup>*</sup>", legend=False)

fig1.update_layout(height=335, width=400)
fig2.update_layout(height=335, width=400)
for fig in [fig1, fig2]:
    fig.update_layout(
        autosize=False,
        legend=dict(font_size=16, yanchor="top", y=1, xanchor="left", x=0.7),
        margin=dict(t=10),
        paper_bgcolor="rgba(0, 0, 0, 0)",
        plot_bgcolor="rgba(0, 0, 0, 0)",
        yaxis_scaleanchor="x",
    )
    fig.update_yaxes(autorange="reversed")

CANO_PATH_PV = Path("../_static/images/decay-rates-default-canonical-pv.svg")
CANO_PATH_PC = Path("../_static/images/decay-rates-default-canonical-pc.svg")
fig1.write_image(CANO_PATH_PV)
fig2.write_image(CANO_PATH_PC)

SVG files can be downloaded here:

• decay-rates-default-canonical.svg

  • decay-rates-default-canonical-split.svg

  • decay-rates-default-canonical-pc.svg

  • decay-rates-default-canonical-pv.svg

• decay-rates-default-helicity.svg

Show code cell source

Hide code cell source

pc_current = np.tril(pc_rates).sum()
pv_current = np.tril(pv_rates).sum()
np.testing.assert_allclose(
    pc_current + pv_current,
    np.tril(rates).sum(),
    atol=1e-15,
    rtol=1e-15,
)
Markdown(f"""
:::{{tip}}
- Parity-conserving (PC) current: **{pc_current:.1%}**
- Parity-violating (PV) current: **{pv_current:.1%}**
:::
""")

Tip

• Parity-conserving (PC) current: 72.3%

• Parity-violating (PV) current: 29.4%
