Amplitude model with ampform

Formulate helicity amplitude model for \(p \gamma \to \eta \pi^0 p\) symbolically using AmpForm.

Import Python libraries

Hide code cell source

import logging
import os
import warnings
from collections import defaultdict

import ampform
import graphviz
import ipywidgets as w
import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
import qrules
import sympy as sp
from ampform.dynamics.builder import RelativisticBreitWignerBuilder
from ampform.io import aslatex, improve_latex_rendering
from IPython.display import SVG, Image, Markdown, Math, display
from qrules.particle import Particle, load_pdg
from qrules.settings import create_interaction_settings
from tensorwaves.data import (
    SympyDataTransformer,
    TFPhaseSpaceGenerator,
    TFUniformRealNumberGenerator,
)
from tensorwaves.function.sympy import create_parametrized_function

from gluex_nstar import create_pgamma

STATIC_PAGE = "EXECUTE_NB" in os.environ

os.environ["TF_CPP_MIN_LOG_LEVEL"] = "3"
logging.disable(logging.WARNING)
warnings.filterwarnings("ignore")

improve_latex_rendering()
particle_db = load_pdg()

Generate transitions

Interaction types

QRules constructs the conservation rules cumulatively. Weak interactions conserve charge, lepton numbers, and baryon number. Electromagnetic interactions additionally conserve flavor quantum numbers and parity. Strong interactions add isospin and \(G\)-parity conservation. Consequently, the sets of conservation laws obey

\[ \text{weak} \subset \text{electromagnetic} \subset \text{strong}. \]

The values passed to allowed_interaction_types are alternatives for each interaction node. Allowing both "strong" and "EM" therefore does not combine their strengths or conservation laws: QRules tests each node under either set of rules. This allows the electromagnetic production vertex while retaining strongly allowed decay chains.

Verify the conservation-rule hierarchy

Hide code cell source

interaction_settings = create_interaction_settings(
    formalism="helicity",
    particle_db=particle_db,
    mass_conservation_factor=0,
    max_angular_momentum=3,
    max_spin_magnitude=3,
)
interaction_rules = {
    interaction_type: {
        getattr(rule, "__name__", type(rule).__name__)
        for rule in node_settings.conservation_rules
    }
    for interaction_type, (_, node_settings) in interaction_settings.items()
}
assert (
    interaction_rules[qrules.InteractionType.WEAK]
    < interaction_rules[qrules.InteractionType.EM]
    < interaction_rules[qrules.InteractionType.STRONG]
)

pgamma1, pgamma2 = create_pgamma(4.101931071854584)
particle_db.update([pgamma1, pgamma2])

We keep the relevant information about branching fractions in the previous Branching fraction chapter. For simplicity, after the information about branching fraction, and under the current qrules results, we limit the intermediate resonances to be:

• \(a(2)\) for \(\eta \pi^0\),

• \(\Delta(1232)\) for \(\pi p\),

• and \(N(1535)\) for both \(\pi^0 p\) and \(\eta p\).

reaction = qrules.generate_transitions(
    initial_state="pgamma1",
    final_state=["eta", "pi0", "p"],
    allowed_intermediate_particles=["a(2)(1320)", "N(1535)", "Delta(1232)"],
    allowed_interaction_types=["strong", "EM"],
    particle_db=particle_db,
    max_angular_momentum=3,
    max_spin_magnitude=3,
    mass_conservation_factor=0,
)

Show code cell source

Hide code cell source

src = qrules.io.asdot(reaction, collapse_graphs=True)
graphviz.Source(src)

Group resonances by subsystem

Hide code cell source

resonances_by_subsystem = defaultdict(set)
for transition in reaction.transitions:
    (resonance_id, resonance), *_ = transition.intermediate_states.items()
    decay_node_id = transition.topology.edges[resonance_id].ending_node_id
    final_state_ids = transition.topology.get_edge_ids_outgoing_from_node(decay_node_id)
    subsystem = tuple(
        sorted(transition.states[i].particle.name for i in final_state_ids)
    )
    resonances_by_subsystem[subsystem].add(resonance.particle.name)
resonances_by_subsystem = {
    subsystem: sorted(names) for subsystem, names in resonances_by_subsystem.items()
}
assert resonances_by_subsystem == {
    ("eta", "p"): ["N(1535)+"],
    ("eta", "pi0"): ["a(2)(1320)0"],
    ("p", "pi0"): ["Delta(1232)+", "N(1535)+"],
}
rows = [
    f"| {' '.join(subsystem)} | {', '.join(names)} |"
    for subsystem, names in resonances_by_subsystem.items()
]
Markdown("| Subsystem | Resonances |\n| :-------- | :--------- |\n" + "\n".join(rows))

Subsystem	Resonances
p pi0	Delta(1232)+, N(1535)+
eta p	N(1535)+
eta pi0	a(2)(1320)0

The resonance assignments are not identical. Isospin conservation excludes \(\Delta(1232)^+ \to \eta p\), while \(N(1535)^+\) can decay to both \(\pi^0p\) and \(\eta p\).

Formulate model

model_builder = ampform.get_builder(reaction)
model_builder.config.scalar_initial_state_mass = True
model_builder.config.stable_final_state_ids = 0, 1, 2
bw_builder = RelativisticBreitWignerBuilder(
    energy_dependent_width=False,
    form_factor=False,
)
for name in reaction.get_intermediate_particles().names:
    model_builder.dynamics.assign(name, bw_builder)
model = model_builder.formulate()

The first component of the full amplitude is shown below. The other terms are in similar way of formualation and thus not showing explicitly here again.

Show code cell source

Hide code cell source

(symbol, expr), *_ = model.amplitudes.items()
Math(aslatex({symbol: expr}, terms_per_line=1))

\[\begin{split}\displaystyle \begin{aligned} A^{01}_{- \frac{1}{2}, 0, 0, - \frac{1}{2}} \;&=\; \frac{C_{p\gamma (s1/2) \xrightarrow[S=3/2]{L=1} a_{2}(1320)^{0} p; a_{2}(1320)^{0} \xrightarrow[S=0]{L=2} \eta \pi^{0}} \Gamma_{a_{2}(1320)^{0}} m_{a_{2}(1320)^{0}} C^{0,0}_{0,0,0,0} C^{\frac{1}{2},- \frac{1}{2}}_{1,0,\frac{3}{2},- \frac{1}{2}} C^{\frac{3}{2},- \frac{1}{2}}_{2,-1,\frac{1}{2},\frac{1}{2}} C^{2,0}_{2,0,0,0} D^{\frac{1}{2}}_{- \frac{1}{2},- \frac{1}{2}}\left(- \phi_{01},\theta_{01},0\right) D^{2}_{-1,0}\left(- \phi^{01}_{0},\theta^{01}_{0},0\right)}{- i \Gamma_{a_{2}(1320)^{0}} m_{a_{2}(1320)^{0}} - m_{01}^{2} + \left(m_{a_{2}(1320)^{0}}\right)^{2}} \\ \;&+\; \frac{C_{p\gamma (s1/2) \xrightarrow[S=3/2]{L=1} a_{2}(1320)^{0} p; a_{2}(1320)^{0} \xrightarrow[S=0]{L=2} \eta \pi^{0}} \Gamma_{a_{2}(1320)^{0}} m_{a_{2}(1320)^{0}} C^{0,0}_{0,0,0,0} C^{\frac{1}{2},\frac{1}{2}}_{1,0,\frac{3}{2},\frac{1}{2}} C^{2,0}_{2,0,0,0} C^{\frac{3}{2},\frac{1}{2}}_{2,0,\frac{1}{2},\frac{1}{2}} D^{\frac{1}{2}}_{- \frac{1}{2},\frac{1}{2}}\left(- \phi_{01},\theta_{01},0\right) D^{2}_{0,0}\left(- \phi^{01}_{0},\theta^{01}_{0},0\right)}{- i \Gamma_{a_{2}(1320)^{0}} m_{a_{2}(1320)^{0}} - m_{01}^{2} + \left(m_{a_{2}(1320)^{0}}\right)^{2}} \\ \;&+\; \frac{C_{p\gamma (s1/2) \xrightarrow[S=5/2]{L=3} a_{2}(1320)^{0} p; a_{2}(1320)^{0} \xrightarrow[S=0]{L=2} \eta \pi^{0}} \Gamma_{a_{2}(1320)^{0}} m_{a_{2}(1320)^{0}} C^{0,0}_{0,0,0,0} C^{\frac{5}{2},- \frac{1}{2}}_{2,-1,\frac{1}{2},\frac{1}{2}} C^{2,0}_{2,0,0,0} C^{\frac{1}{2},- \frac{1}{2}}_{3,0,\frac{5}{2},- \frac{1}{2}} D^{\frac{1}{2}}_{- \frac{1}{2},- \frac{1}{2}}\left(- \phi_{01},\theta_{01},0\right) D^{2}_{-1,0}\left(- \phi^{01}_{0},\theta^{01}_{0},0\right)}{- i \Gamma_{a_{2}(1320)^{0}} m_{a_{2}(1320)^{0}} - m_{01}^{2} + \left(m_{a_{2}(1320)^{0}}\right)^{2}} \\ \;&+\; \frac{C_{p\gamma (s1/2) \xrightarrow[S=5/2]{L=3} a_{2}(1320)^{0} p; a_{2}(1320)^{0} \xrightarrow[S=0]{L=2} \eta \pi^{0}} \Gamma_{a_{2}(1320)^{0}} m_{a_{2}(1320)^{0}} C^{0,0}_{0,0,0,0} C^{2,0}_{2,0,0,0} C^{\frac{5}{2},\frac{1}{2}}_{2,0,\frac{1}{2},\frac{1}{2}} C^{\frac{1}{2},\frac{1}{2}}_{3,0,\frac{5}{2},\frac{1}{2}} D^{\frac{1}{2}}_{- \frac{1}{2},\frac{1}{2}}\left(- \phi_{01},\theta_{01},0\right) D^{2}_{0,0}\left(- \phi^{01}_{0},\theta^{01}_{0},0\right)}{- i \Gamma_{a_{2}(1320)^{0}} m_{a_{2}(1320)^{0}} - m_{01}^{2} + \left(m_{a_{2}(1320)^{0}}\right)^{2}} \\ \end{aligned}\end{split}\]

Show code cell source

Hide code cell source

sorted_parameter_defaults = {
    symbol: model.parameter_defaults[symbol]
    for symbol in sorted(model.parameter_defaults, key=str)
}
src = aslatex(sorted_parameter_defaults)
Math(src)

\[\begin{split}\displaystyle \begin{aligned} C_{p\gamma (s1/2) \xrightarrow[S=1/2]{L=1} N(1535)^{+} \eta; N(1535)^{+} \xrightarrow[S=1/2]{L=0} p \pi^{0}} \;&=\; 1+0i \\ C_{p\gamma (s1/2) \xrightarrow[S=1/2]{L=1} N(1535)^{+} \pi^{0}; N(1535)^{+} \xrightarrow[S=1/2]{L=0} \eta p} \;&=\; 1+0i \\ C_{p\gamma (s1/2) \xrightarrow[S=3/2]{L=1} a_{2}(1320)^{0} p; a_{2}(1320)^{0} \xrightarrow[S=0]{L=2} \eta \pi^{0}} \;&=\; 1+0i \\ C_{p\gamma (s1/2) \xrightarrow[S=3/2]{L=2} \Delta(1232)^{+} \eta; \Delta(1232)^{+} \xrightarrow[S=1/2]{L=1} p \pi^{0}} \;&=\; 1+0i \\ C_{p\gamma (s1/2) \xrightarrow[S=5/2]{L=3} a_{2}(1320)^{0} p; a_{2}(1320)^{0} \xrightarrow[S=0]{L=2} \eta \pi^{0}} \;&=\; 1+0i \\ \Gamma_{N(1535)^{+}} \;&=\; 0.15 \\ \Gamma_{\Delta(1232)^{+}} \;&=\; 0.117 \\ \Gamma_{a_{2}(1320)^{0}} \;&=\; 0.107 \\ m_{0} \;&=\; 0.547862 \\ m_{012} \;&=\; 4.101931071854584 \\ m_{1} \;&=\; 0.1349768 \\ m_{2} \;&=\; 0.9382720894300001 \\ m_{N(1535)^{+}} \;&=\; 1.53 \\ m_{\Delta(1232)^{+}} \;&=\; 1.232 \\ m_{a_{2}(1320)^{0}} \;&=\; 1.3182 \\ \end{aligned}\end{split}\]

Show code cell source

Hide code cell source

Math(aslatex(model.kinematic_variables))

\[\begin{split}\displaystyle \begin{aligned} m_{01} \;&=\; m_{{p}_{01}} \\ m_{02} \;&=\; m_{{p}_{02}} \\ m_{12} \;&=\; m_{{p}_{12}} \\ \phi_{0} \;&=\; \phi\left({p}_{12}\right) \\ \phi^{01}_{0} \;&=\; \phi\left(\boldsymbol{B_z}\left(\frac{\left|\vec{{p}_{01}}\right|}{E\left({p}_{01}\right)}\right) \boldsymbol{R_y}\left(- \theta\left({p}_{01}\right)\right) \boldsymbol{R_z}\left(- \phi\left({p}_{01}\right)\right) p_{0}\right) \\ \phi^{02}_{0} \;&=\; \phi\left(\boldsymbol{B_z}\left(\frac{\left|\vec{{p}_{02}}\right|}{E\left({p}_{02}\right)}\right) \boldsymbol{R_y}\left(- \theta\left({p}_{02}\right)\right) \boldsymbol{R_z}\left(- \phi\left({p}_{02}\right)\right) p_{0}\right) \\ \phi_{01} \;&=\; \phi\left({p}_{01}\right) \\ \phi^{12}_{1} \;&=\; \phi\left(\boldsymbol{B_z}\left(\frac{\left|\vec{{p}_{12}}\right|}{E\left({p}_{12}\right)}\right) \boldsymbol{R_y}\left(- \theta\left({p}_{12}\right)\right) \boldsymbol{R_z}\left(- \phi\left({p}_{12}\right)\right) p_{1}\right) \\ \phi_{02} \;&=\; \phi\left({p}_{02}\right) \\ \theta_{0} \;&=\; \theta\left({p}_{12}\right) \\ \theta^{01}_{0} \;&=\; \theta\left(\boldsymbol{B_z}\left(\frac{\left|\vec{{p}_{01}}\right|}{E\left({p}_{01}\right)}\right) \boldsymbol{R_y}\left(- \theta\left({p}_{01}\right)\right) \boldsymbol{R_z}\left(- \phi\left({p}_{01}\right)\right) p_{0}\right) \\ \theta^{02}_{0} \;&=\; \theta\left(\boldsymbol{B_z}\left(\frac{\left|\vec{{p}_{02}}\right|}{E\left({p}_{02}\right)}\right) \boldsymbol{R_y}\left(- \theta\left({p}_{02}\right)\right) \boldsymbol{R_z}\left(- \phi\left({p}_{02}\right)\right) p_{0}\right) \\ \theta_{01} \;&=\; \theta\left({p}_{01}\right) \\ \theta^{12}_{1} \;&=\; \theta\left(\boldsymbol{B_z}\left(\frac{\left|\vec{{p}_{12}}\right|}{E\left({p}_{12}\right)}\right) \boldsymbol{R_y}\left(- \theta\left({p}_{12}\right)\right) \boldsymbol{R_z}\left(- \phi\left({p}_{12}\right)\right) p_{1}\right) \\ \theta_{02} \;&=\; \theta\left({p}_{02}\right) \\ \end{aligned}\end{split}\]

Visualization

unfolded_expression = model.expression.doit()
intensity_func = create_parametrized_function(
    expression=unfolded_expression,
    parameters=model.parameter_defaults,
    backend="jax",
)

phsp_event = 500_000
rng = TFUniformRealNumberGenerator(seed=0)
phsp_generator = TFPhaseSpaceGenerator(
    initial_state_mass=reaction.initial_state[-1].mass,
    final_state_masses={i: p.mass for i, p in reaction.final_state.items()},
)
phsp_momenta = phsp_generator.generate(phsp_event, rng)

Show code cell output

Hide code cell output

WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
I0000 00:00:1787862482.013121    3263 cudart_stub.cc:31] Could not find cuda drivers on your machine, GPU will not be used.

WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
I0000 00:00:1787862485.921942    3263 cudart_stub.cc:31] Could not find cuda drivers on your machine, GPU will not be used.

helicity_transformer = SympyDataTransformer.from_sympy(
    model.kinematic_variables,
    backend="jax",
)
phsp = helicity_transformer(phsp_momenta)

Collect resonances for each subsystem

Hide code cell source

resonances = defaultdict(set)
for transition in reaction.transitions:
    topology = transition.topology
    top_decay_products = topology.get_edge_ids_outgoing_from_node(0)
    (resonance_id, resonance), *_ = transition.intermediate_states.items()
    recoil_id, *_ = top_decay_products - {resonance_id}
    resonances[recoil_id].add(resonance.particle)
resonances = {k: sorted(v, key=lambda p: p.mass) for k, v in resonances.items()}
{k: [p.name for p in v] for k, v in resonances.items()}

{0: ['Delta(1232)+', 'N(1535)+'], 1: ['N(1535)+'], 2: ['a(2)(1320)0']}

Design slider UI

Hide code cell source

sliders = {}
categorized_sliders_m = defaultdict(list)
categorized_sliders_gamma = defaultdict(list)
categorized_cphi_pair = defaultdict(list)

for symbol, value in model.parameter_defaults.items():
    if symbol.name.startswith(R"\Gamma_{"):
        slider = w.FloatSlider(
            description=Rf"\({sp.latex(symbol)}\)",
            min=0.0,
            max=1.0,
            step=0.01,
            value=value,
            continuous_update=False,
        )
        sliders[symbol.name] = slider
        if symbol.name.startswith(R"\Gamma_{N"):
            categorized_sliders_gamma[0].append(slider)
        elif symbol.name.startswith(R"\Gamma_{\D"):
            categorized_sliders_gamma[1].append(slider)
        elif symbol.name.startswith(R"\Gamma_{a"):
            categorized_sliders_gamma[2].append(slider)

    if symbol.name.startswith("m_{"):
        slider = w.FloatSlider(
            description=Rf"\({sp.latex(symbol)}\)",
            min=0.63,
            max=4,
            step=0.01,
            value=value,
            continuous_update=False,
        )
        sliders[symbol.name] = slider
        if symbol.name.startswith("m_{N"):
            categorized_sliders_m[0].append(slider)
        elif symbol.name.startswith(R"m_{\D"):
            categorized_sliders_m[1].append(slider)
        elif symbol.name.startswith("m_{a"):
            categorized_sliders_m[2].append(slider)

    if symbol.name.startswith("C_{"):
        c_latex = sp.latex(symbol)
        phi_latex = c_latex.replace("C", R"\phi", 1)

        slider_c = w.FloatSlider(
            description=Rf"\({c_latex}\)",
            min=0,
            max=10,
            step=0.01,
            value=abs(value),
            continuous_update=False,
        )
        slider_phi = w.FloatSlider(
            description=Rf"\({phi_latex}\)",
            min=-np.pi,
            max=+np.pi,
            step=0.01,
            value=np.angle(value),
            continuous_update=False,
        )

        sliders[symbol.name] = slider_c
        sliders[symbol.name.replace("C", "phi", 1)] = slider_phi

        cphi_hbox = w.HBox([slider_c, slider_phi])
        if R"\D" in symbol.name:
            categorized_cphi_pair[1].append(cphi_hbox)
        elif "N" in symbol.name:
            categorized_cphi_pair[0].append(cphi_hbox)
        elif "a" in symbol.name:
            categorized_cphi_pair[2].append(cphi_hbox)

tab_contents = []
resonances_name = ["N*", "Δ*", "a₂*"]
for i in range(len(resonances_name)):
    tab_content = w.VBox([
        w.HBox(categorized_sliders_m[i] + categorized_sliders_gamma[i]),
        w.VBox(categorized_cphi_pair[i]),
    ])
    tab_contents.append(tab_content)
UI = w.Tab(tab_contents, titles=resonances_name)

Show code cell source

Hide code cell source

def insert_phi(parameters: dict) -> dict:
    updated_parameters = {}
    for key, value in parameters.items():
        if key.startswith("phi_"):
            continue
        if key.startswith("C_"):
            phi_key = key.replace("C_", "phi_")
            if phi_key in parameters:
                phi = parameters[phi_key]
                value *= np.exp(1j * phi)  # ruff: ignore[redefined-loop-name]
        updated_parameters[key] = value
    return updated_parameters

%matplotlib widget

Show code cell source

Hide code cell source

fig_2d, ax_2d = plt.subplots(dpi=200)

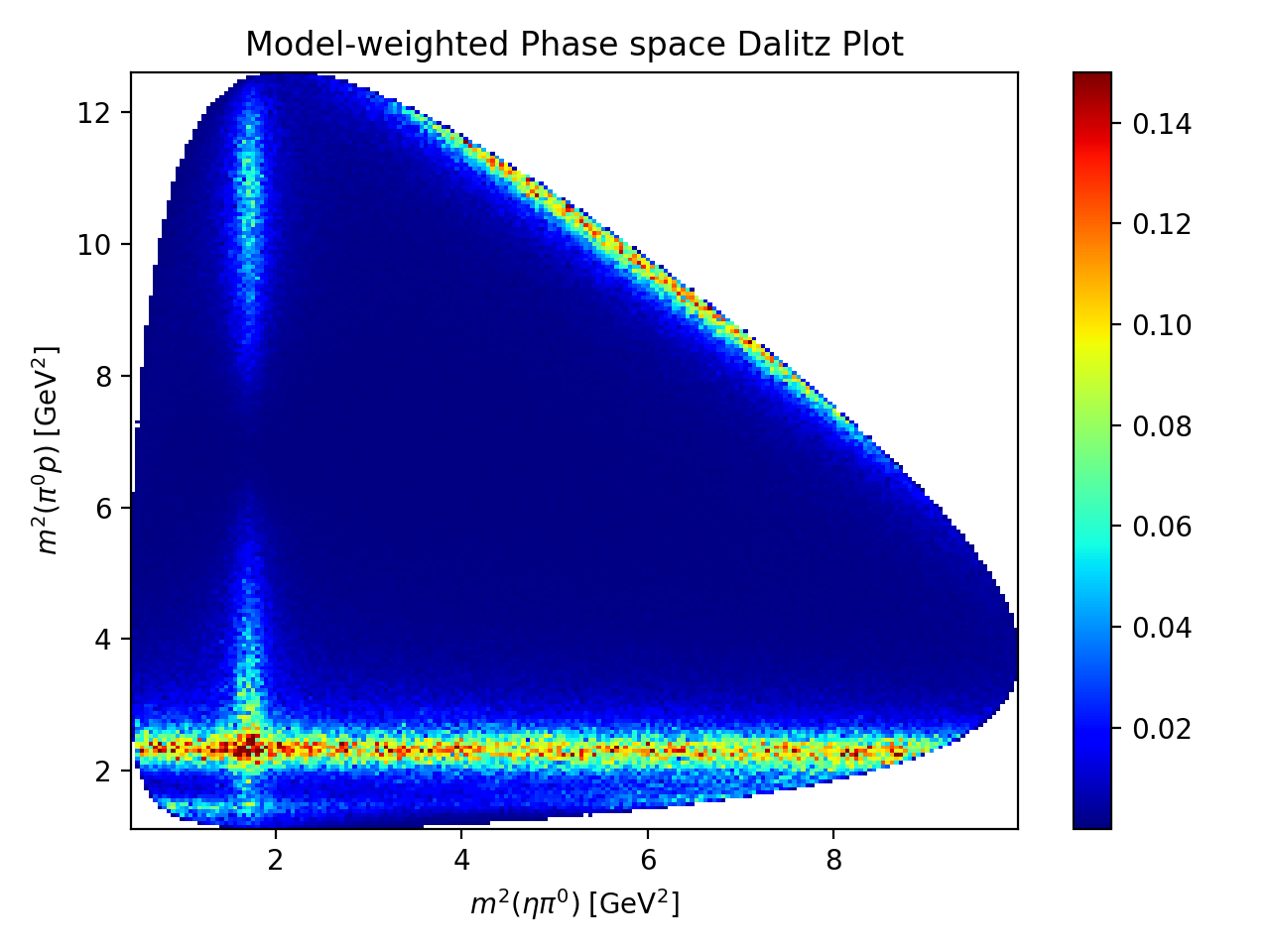

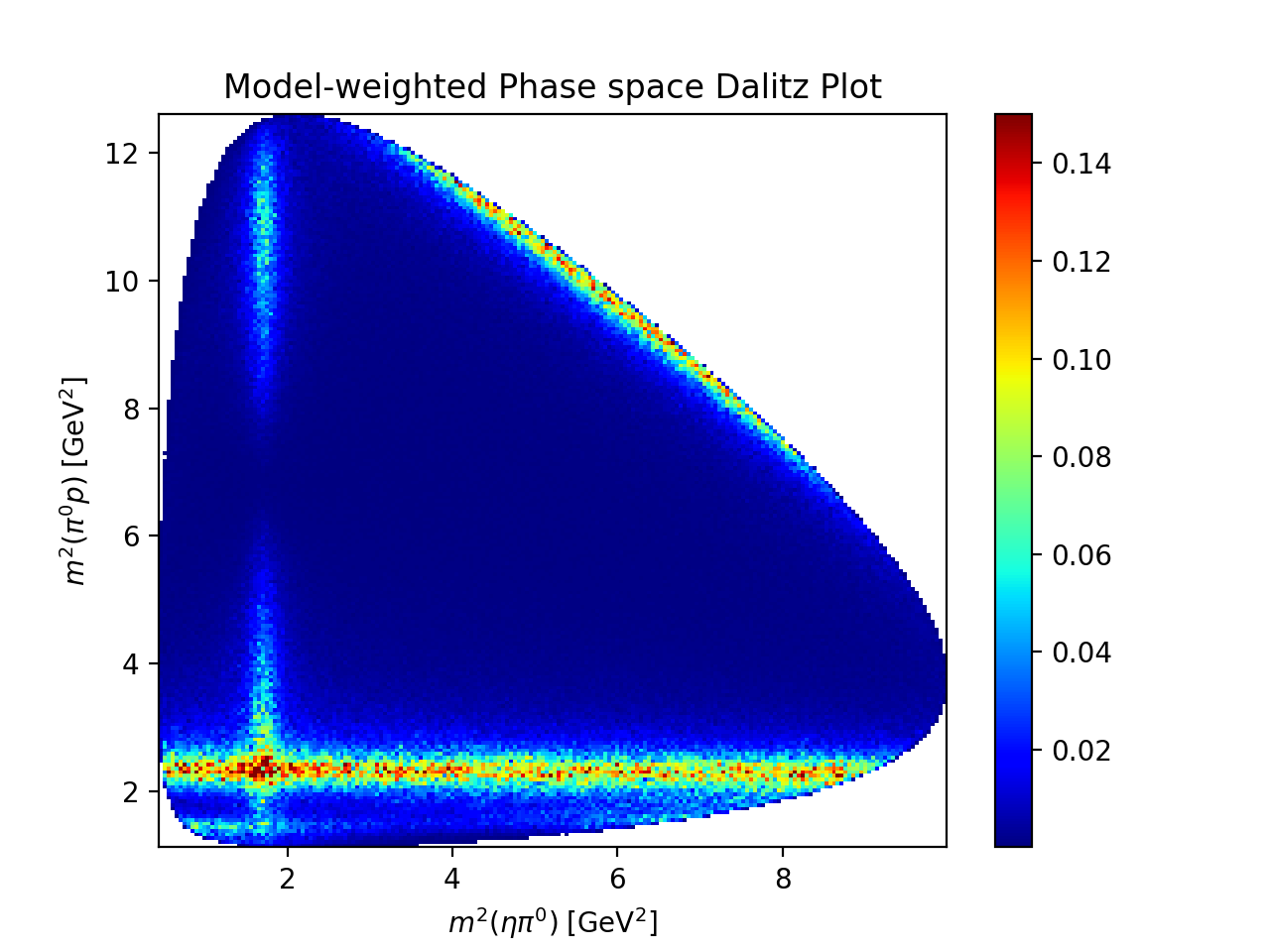

ax_2d.set_title("Model-weighted Phase space Dalitz Plot")
ax_2d.set_xlabel(R"$m^2(\eta \pi^0)\;\left[\mathrm{GeV}^2\right]$")
ax_2d.set_ylabel(R"$m^2(\pi^0 p)\;\left[\mathrm{GeV}^2\right]$")
fig_2d.canvas.toolbar_visible = False
fig_2d.canvas.header_visible = False
fig_2d.canvas.footer_visible = False

mesh = None


def update_histogram(**parameters):
    global mesh
    parameters = insert_phi(parameters)
    intensity_func.update_parameters(parameters)
    intensity_weights = intensity_func(phsp)
    bin_values, xedges, yedges = jnp.histogram2d(
        phsp["m_01"].real ** 2,
        phsp["m_12"].real ** 2,
        bins=200,
        weights=intensity_weights,
        density=True,
    )
    bin_values = jnp.where(bin_values < 1e-6, jnp.nan, bin_values)
    x, y = jnp.meshgrid(xedges[:-1], yedges[:-1])
    if mesh is None:
        mesh = ax_2d.pcolormesh(x, y, bin_values.T, cmap="jet", vmax=0.15)
    else:
        mesh.set_array(bin_values.T)
    fig_2d.canvas.draw()


w.interactive_output(update_histogram, sliders)
fig_2d.colorbar(mesh, ax=ax_2d)

if STATIC_PAGE:
    filename = "dalitz-plot-auto.png"
    fig_2d.savefig(filename)
    plt.close(fig_2d)
    display(UI, Image(filename))
else:
    display(UI, fig_2d.canvas)

Show code cell source

Hide code cell source

fig, axes = plt.subplots(figsize=(11, 3.5), ncols=3, sharey=True)
fig.canvas.toolbar_visible = False
fig.canvas.header_visible = False
fig.canvas.footer_visible = False
ax1, ax2, ax3 = axes

for recoil_id, ax in enumerate(axes):
    decay_products = sorted({0, 1, 2} - {recoil_id})
    product_latex = " ".join([reaction.final_state[i].latex for i in decay_products])
    ax.set_xlabel(f"$m({product_latex})$ [GeV]")

LINES = 3 * [None]
RESONANCE_LINES = defaultdict(dict)


def update_plot(**parameters):
    parameters = insert_phi(parameters)
    intensity_func.update_parameters(parameters)
    intensities = intensity_func(phsp)
    max_value = 0
    resonance_colors: dict[Particle, int] = {}
    color_id = 0
    for recoil_id, ax in enumerate(axes):
        decay_products = sorted({0, 1, 2} - {recoil_id})
        key = f"m_{''.join(str(i) for i in decay_products)}"
        bin_values, bin_edges = jax.numpy.histogram(
            phsp[key].real,
            bins=120,
            density=True,
            weights=intensities,
        )
        max_value = max(max_value, bin_values.max())

        if LINES[recoil_id] is None:
            LINES[recoil_id] = ax.step(bin_edges[:-1], bin_values, alpha=0.5)[0]
        else:
            LINES[recoil_id].set_ydata(bin_values)

        for resonance in resonances[recoil_id]:
            key = f"m_{{{resonance.latex}}}"
            val = parameters.get(key, resonance.mass)
            resonance_line = RESONANCE_LINES[recoil_id].get(resonance.name)
            if resonance_line is None:
                RESONANCE_LINES[recoil_id][resonance.name] = ax.axvline(
                    val,
                    c=f"C{resonance_colors.get(resonance, color_id)}",
                    ls="dotted",
                    label=resonance.name,
                )
            else:
                resonance_line.set_xdata([val, val])
            if resonance not in resonance_colors:
                resonance_colors[resonance] = color_id
                color_id += 1

    for ax in axes:
        ax.set_ylim(0, max_value * 1.1)


w.interactive_output(update_plot, sliders)
for ax in axes:
    ax.legend(fontsize="small")

if STATIC_PAGE:
    filename = "1d-histograms-auto.svg"
    fig.savefig(filename)
    plt.close(fig)
    display(UI, SVG(filename))
else:
    display(UI, fig.canvas)
